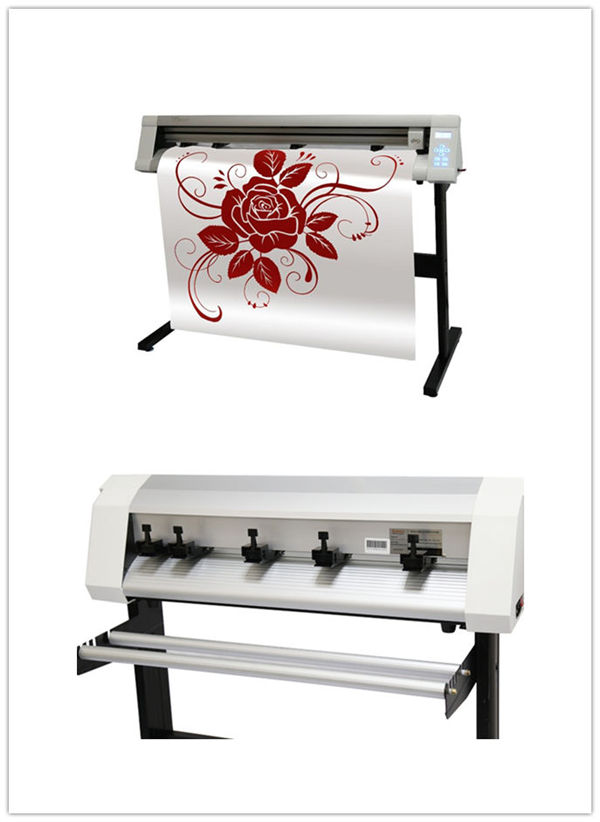

Otomatik kontur 1000g 1600mm vinil kesici makinesi

Özel t shirt baskı makinesi ile giysi yazıcıya doğrudan

Quick Details

Voltage:AC110V/220V
Cache Capacity:256MB
Paper Feed Width:730mm
Cutter Pressure:0-1000g
Cutting Width:630 mm
Cutting Speed:800mm/s
Driver:Stepper Motor
Cutting Length:MAX 10Meters
Repeat Cutting:1-500 Times
Size:1590*330*395mm
step moter:Laser Sensor
Coreldraw plug-in:automatic contour
optional Large Force Cutting:High Precision grit roller

Ürün Açıklaması

Our Series Main Features
Automatic Contour cutting 3M Reflective Film Cutter machine
typical configuration to meet most customers needs.
1.With ARMS sensor
2.High force to cut reflective film
3.Real high speed 256MB memory
4.High precision steel roller: guaranteed 5m without deviation of paper feeding
5.Low noise:ultra quiet design
6.High performance 32-bit processor with ARM Cortex-M3
7.High accuracy machine structure allows to cut 2mm letters without distortion
8.Can work with U disc directly,
9.Support CoreIDRAW output directly

model
330 (12'')
630(24'')
1200(48'')
1500(59'')
Media Way
Desk cutter
Floor Stand
Floor Stand
Floor Stand
Main Board
High-performance & intelligentARM 32 bits CPU; 256MB memory
sürücü
High speed stepping motor, micro-step driver
Max Paper Feed Width
430mm
730mm
1370mm
1600mm
Max Cutting Width
330mm
630mm
1270mm
1500mm
Max Cutting Speed
                                                                                   800mm/s
Cutting Force
0-1000g
Mechanical Precision
0.05mm
Repeatable Precision
< +-0.1mm
Plotter Instruction
DM-PL/HP-GL Automatic Identification
Interfaces
USB / RS232 port, U-disc port
Güç kaynağı
AC110V /220V±10%, 50Hz/60Hz
Laser Positioning
                                      ARMS(Automatical Registration marks system)
Yazılım
Plug-in for Coreldraw, Artcut, Signcut and Signmaster
Noise at Work
≤50 DB
External Dimension
750*330*400mm
1045*330*400mm
1590*330*400mm
1890*330*400mm
Shipping Weight
15kgs
22kgs
32kgs
45kgs

Warranty &Service

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.

SSS

Q: Are you trading company or manufacturer ?
A: biz fabrika.

Q: Can we join as your comapny Agents ?
A: Yes, welcome warm ! We are now invating the agents all over the world. We support good price and good quality to all of our agents.

Q: What is the WER can give our agents ?
A: We will provide best after-self service once we cooperate; We support your engineer to learn the technology from our factory directly . It will free if you send the engineers to our factory study.

Q: What is WER printer’s Warranty?
A: We will provide 2 years warranty but not include the print heads. Our technology team will try our best to solve all the problems.
